PVC INSULATED AND PVC SHEATHED SOLID & FLEXIBLE CABLE WITH COPPER AND ALUMINIUM CONDUCTROS
CONDUCTOR
|
The construction of conductors for fixed wiring is as follows: -
| Nominal Cross Sectional Area |
Solid / Stranded |
Flexibility Class |
| Copper Sq. mm |
Aluminimum Sq. mm |
|
|
1 to 15 |
1.5 |
Solid |
Class 1 as per IS: 8130-1976. |
2.5 to 6 |
2.5 to 10 |
Solid / Stranded |
Class 1 as per IS: 8130-1976. |
10 and above |
16 and above |
Stranded |
Class 2 as per IS: 8130-1976. |
For the flexible cables the conductor is according of class 5 of IS:8130-1976.
INSULATION
Insulation is of PVC compound conforming to the requirments of type 1 compound of IS:5831-1970.
COLOUR OF INSULATION
The insulation cores are identified by different colouring of PVC insulation. The following scheme is generally adopted.
|
Cables for fixed wiring |
Flexible Cables |
1 Core |
Red, Black, Blue, Yellow, White or Grey |
Red, Black, Yellowm, Blue, White or Grey |
2 Cores |
Red and Black |
Red and Black |
3 Cores |
Red, Yellow, Blue |
Red, Black, Green |
4 Cores |
Red, Yellow, Blue, Black |
Red, Yellow, Blue, Green |
We also manufacture multicore (above four core) flexible cables and we give different colours upto 12 cores cable.
SHEATH:
The sheath is of PVC compound confirming to the requiremnts of Type 6 compound of IS:5831 – 1970.
COLOUR OF THE SHEATH:
The colour of the sheath is black, white or grey
CABLE CODE:
The following code is used for designating the cable.
| Description |
Code |
a) Plain Copper Conductor PVC Insu. Unshealthed cable.
|
Y |
b) Aluminium Conductor PVC Insulated. Unshealthed cable.
|
AY |
c) Plain Copper Conductor PVC Insulated and PVC shealthed cable.
|
YY |
| d) Aluminium Conductor PVC Insulated and PVC shealthed cable. |
AYY |

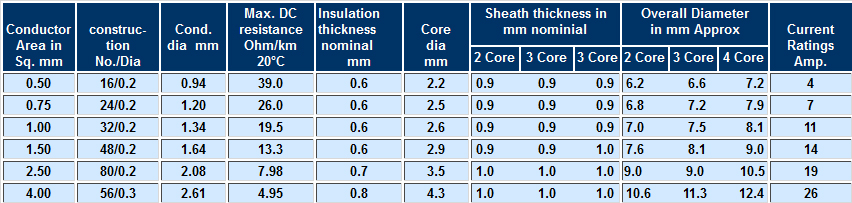

DELIVERY LENGTH:
The cable are generally delivered in 100 mtr. Coils wrapped with Polythene.
|
